Mechanism Wing

$1.00

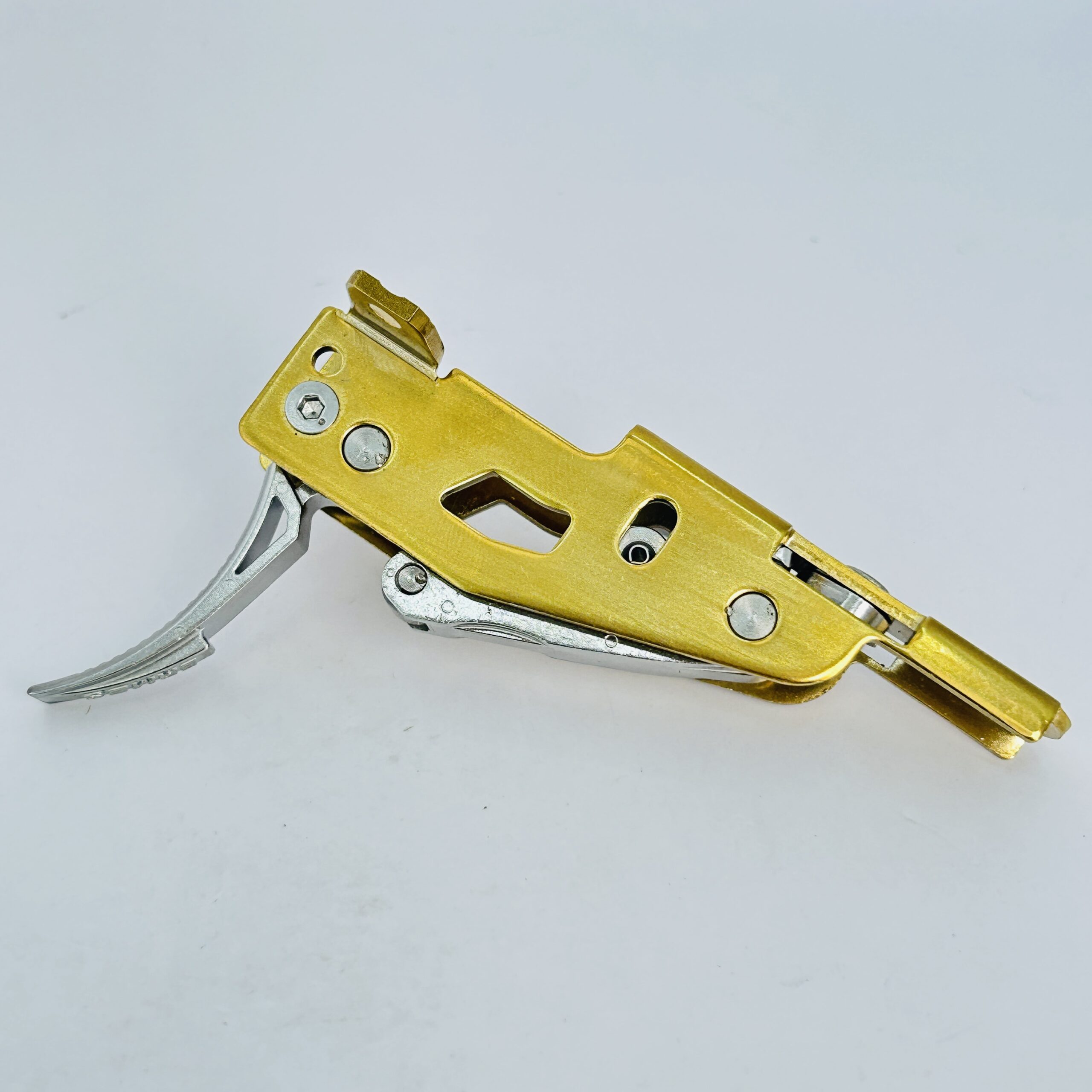

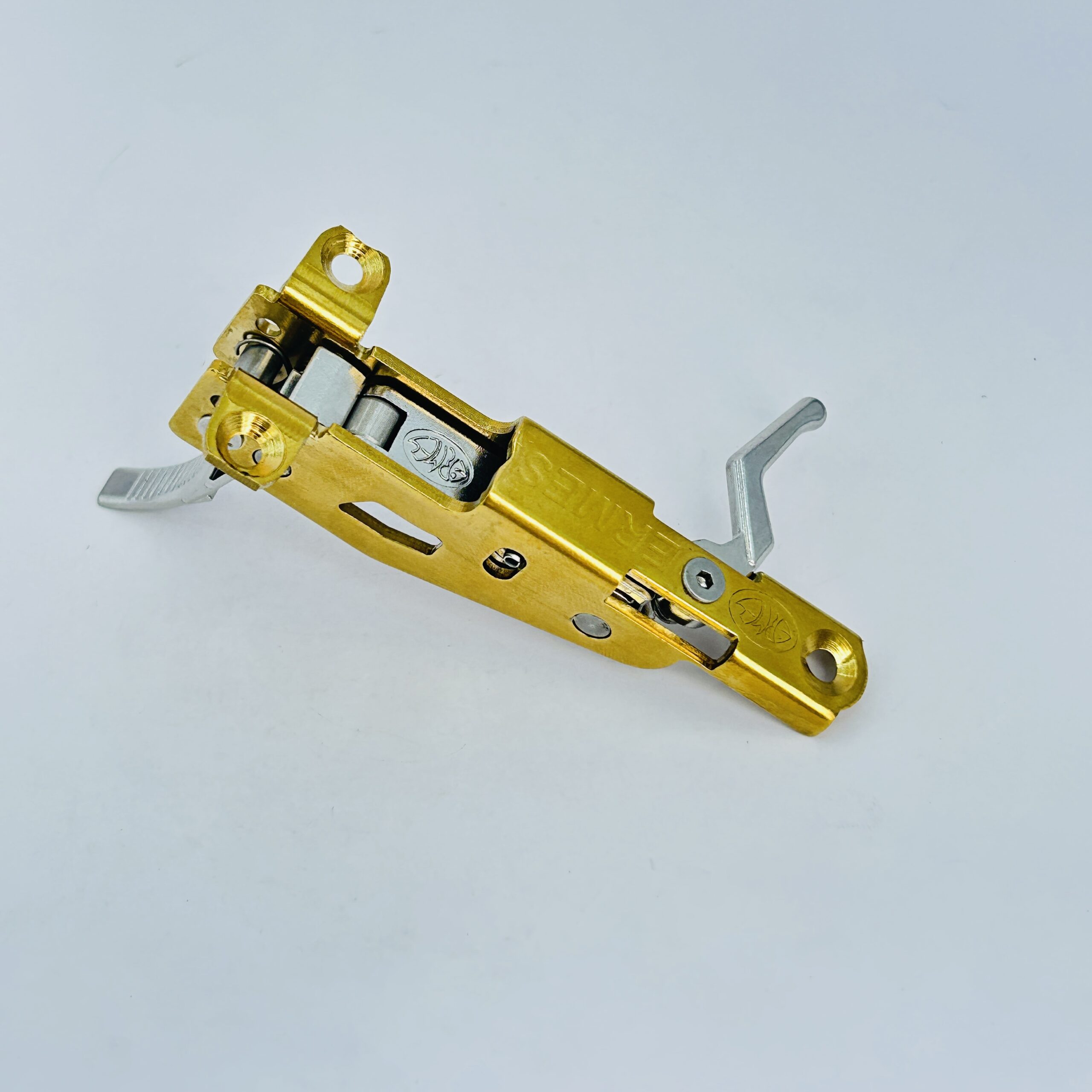

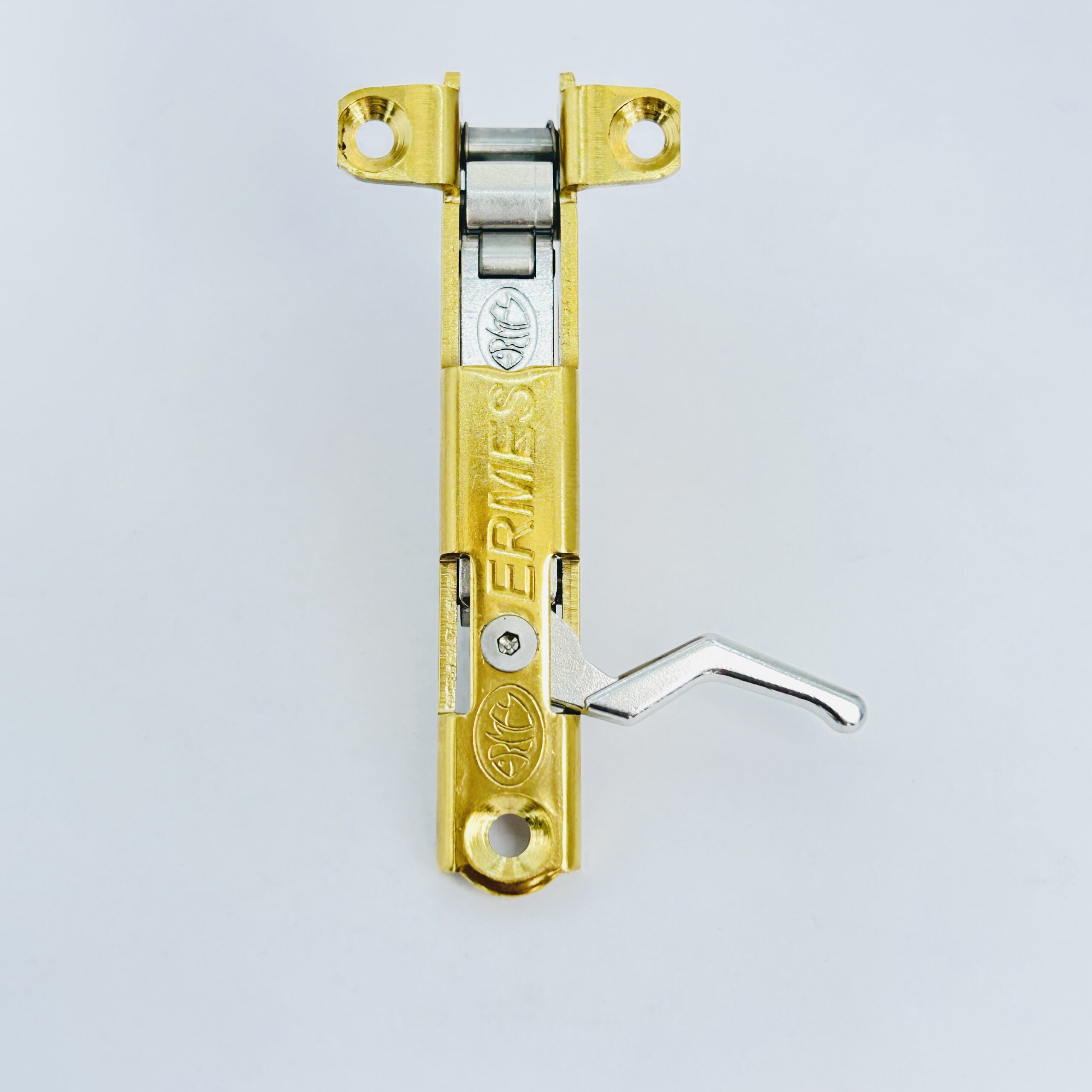

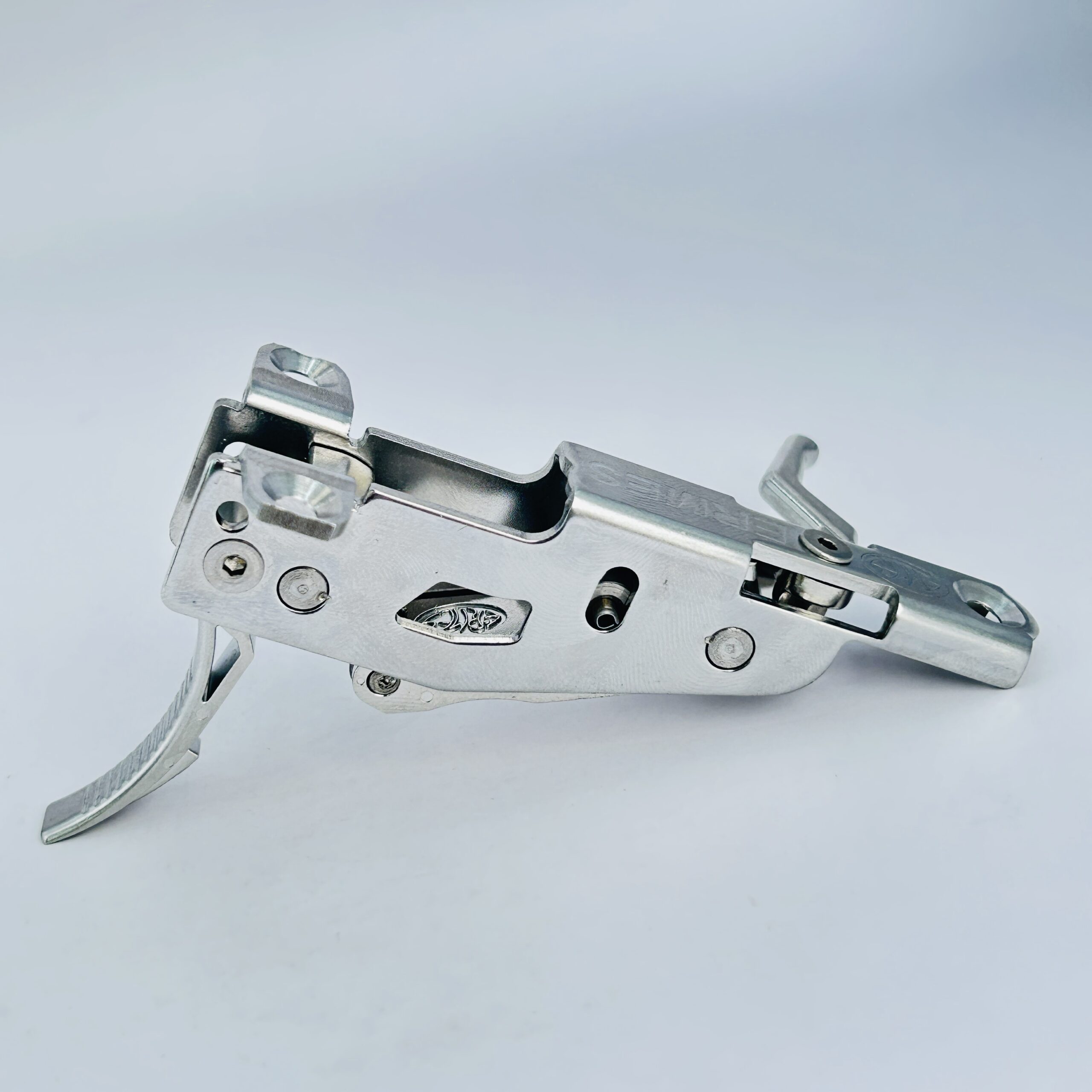

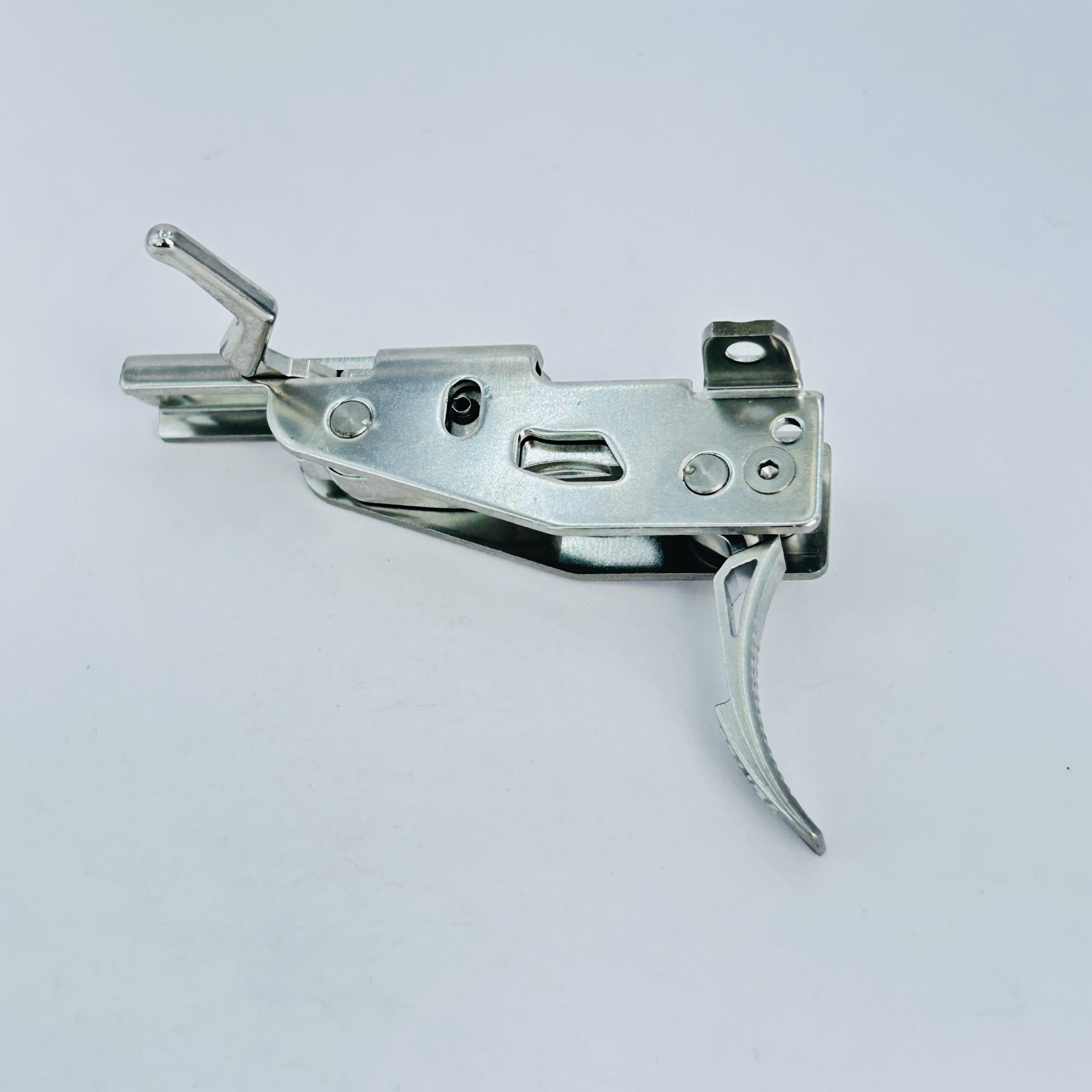

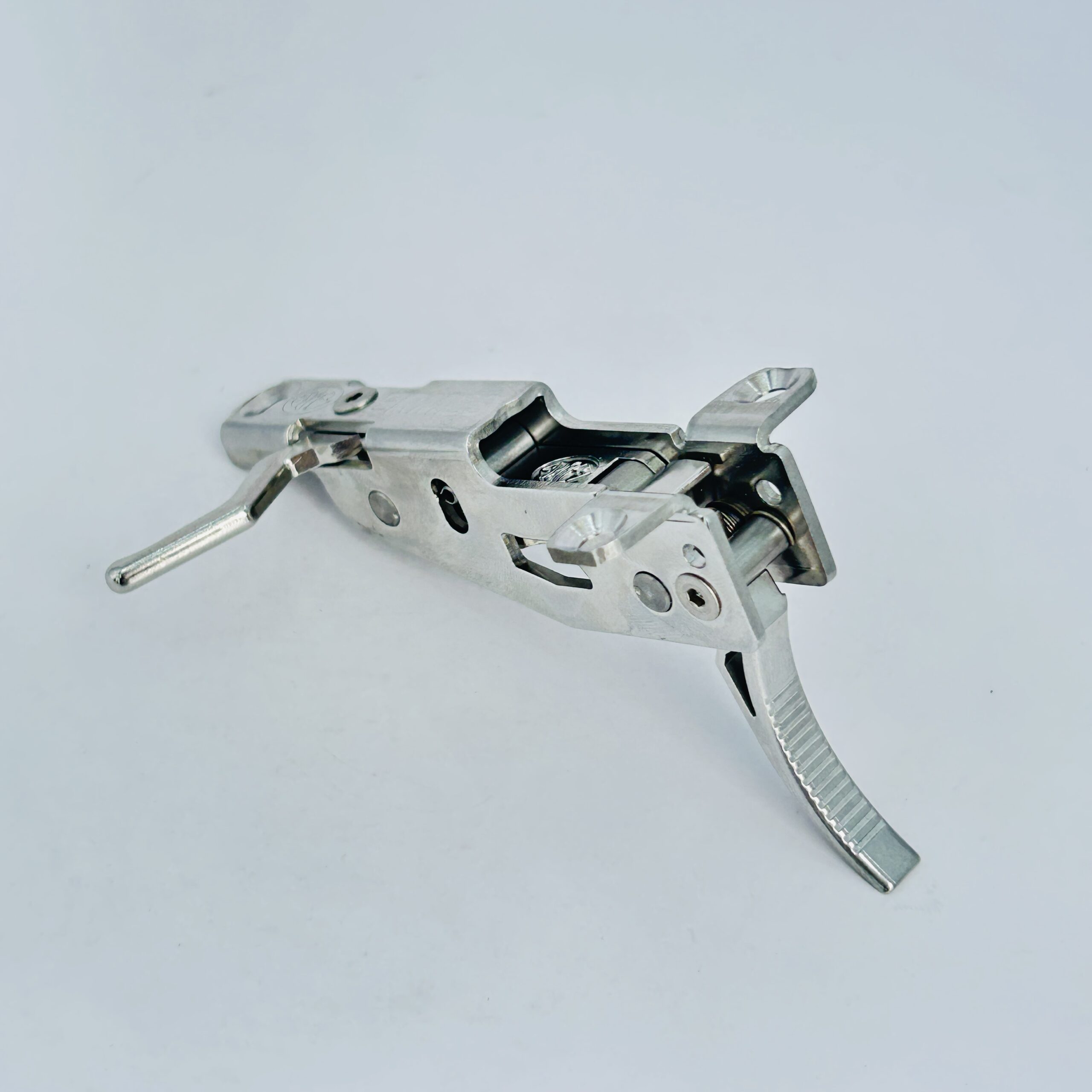

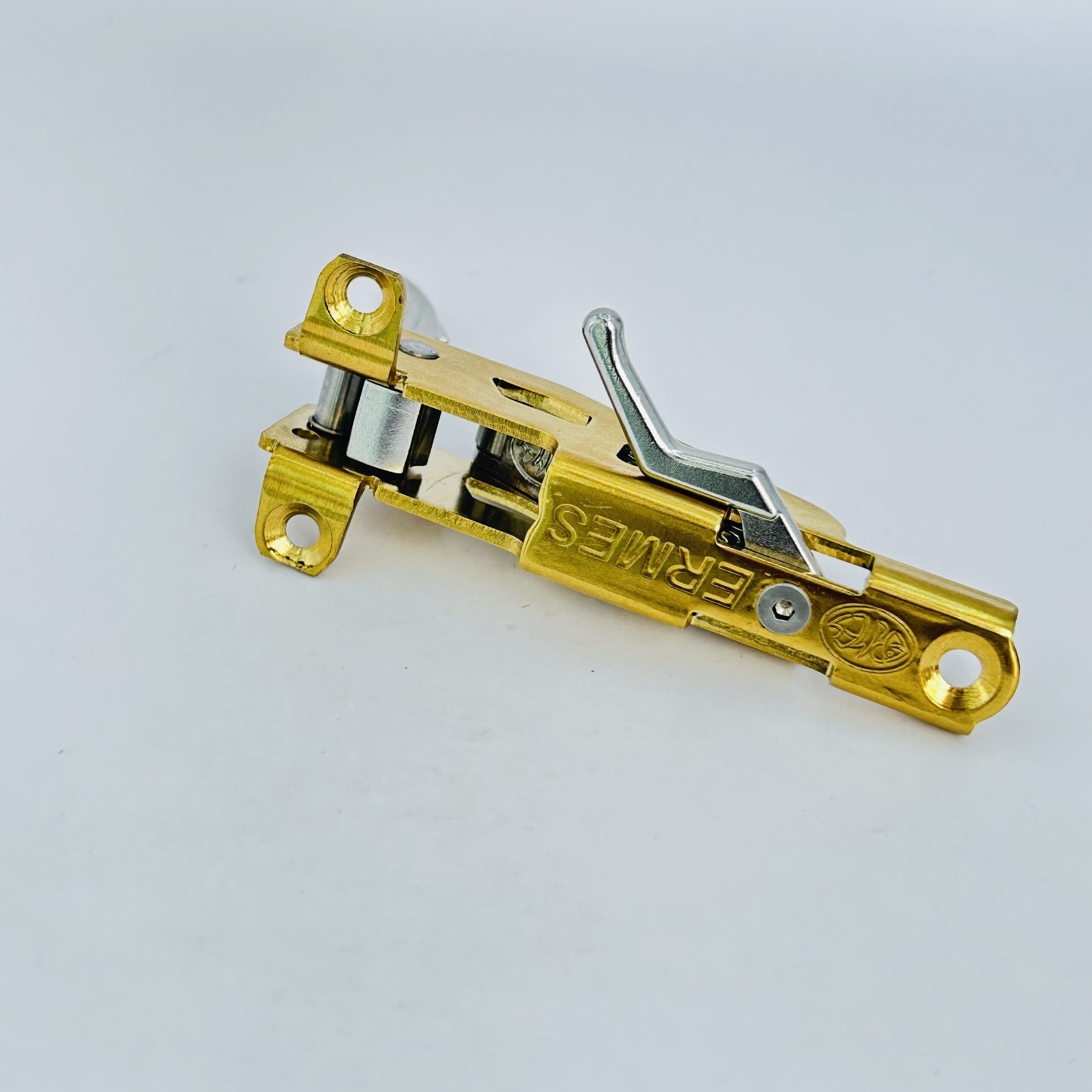

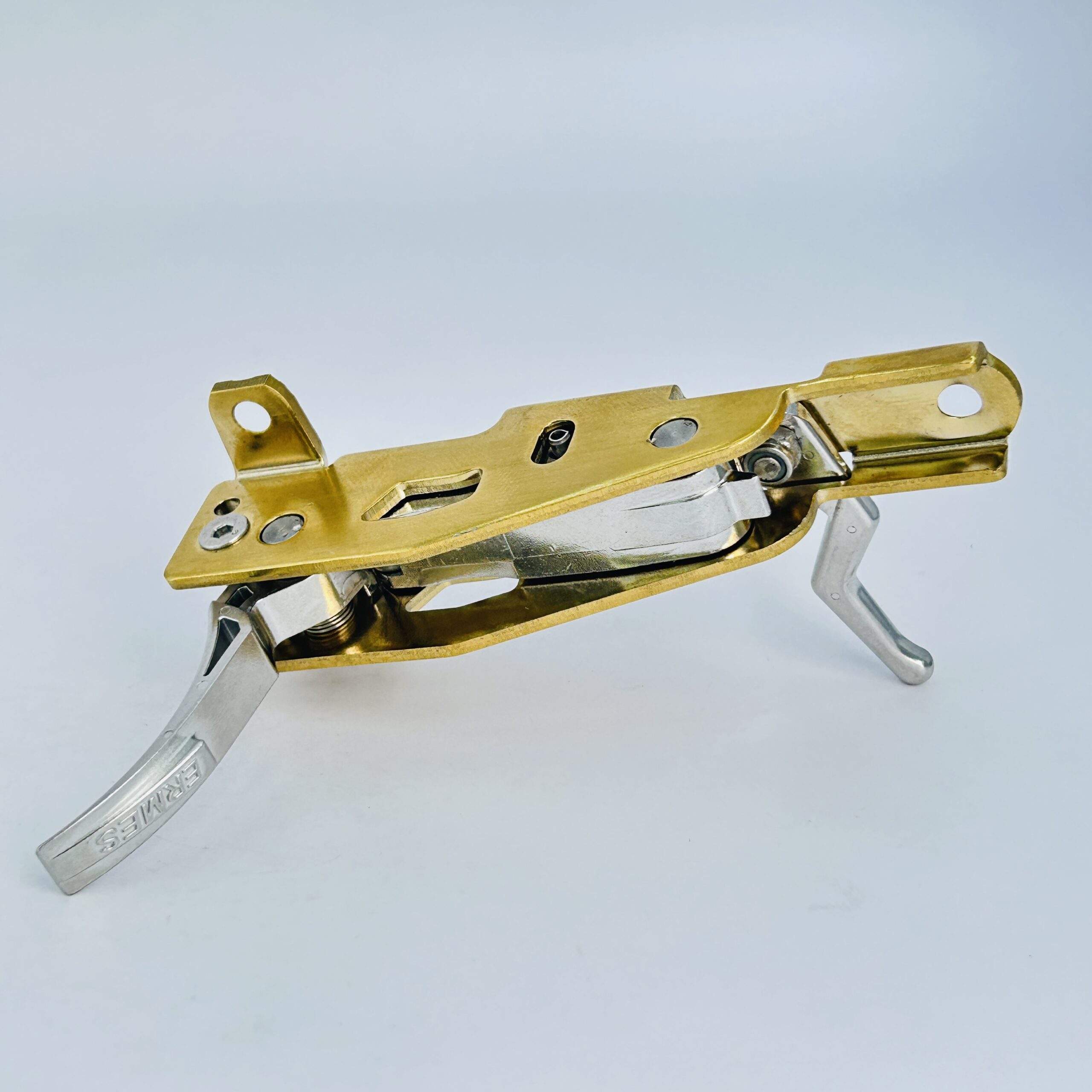

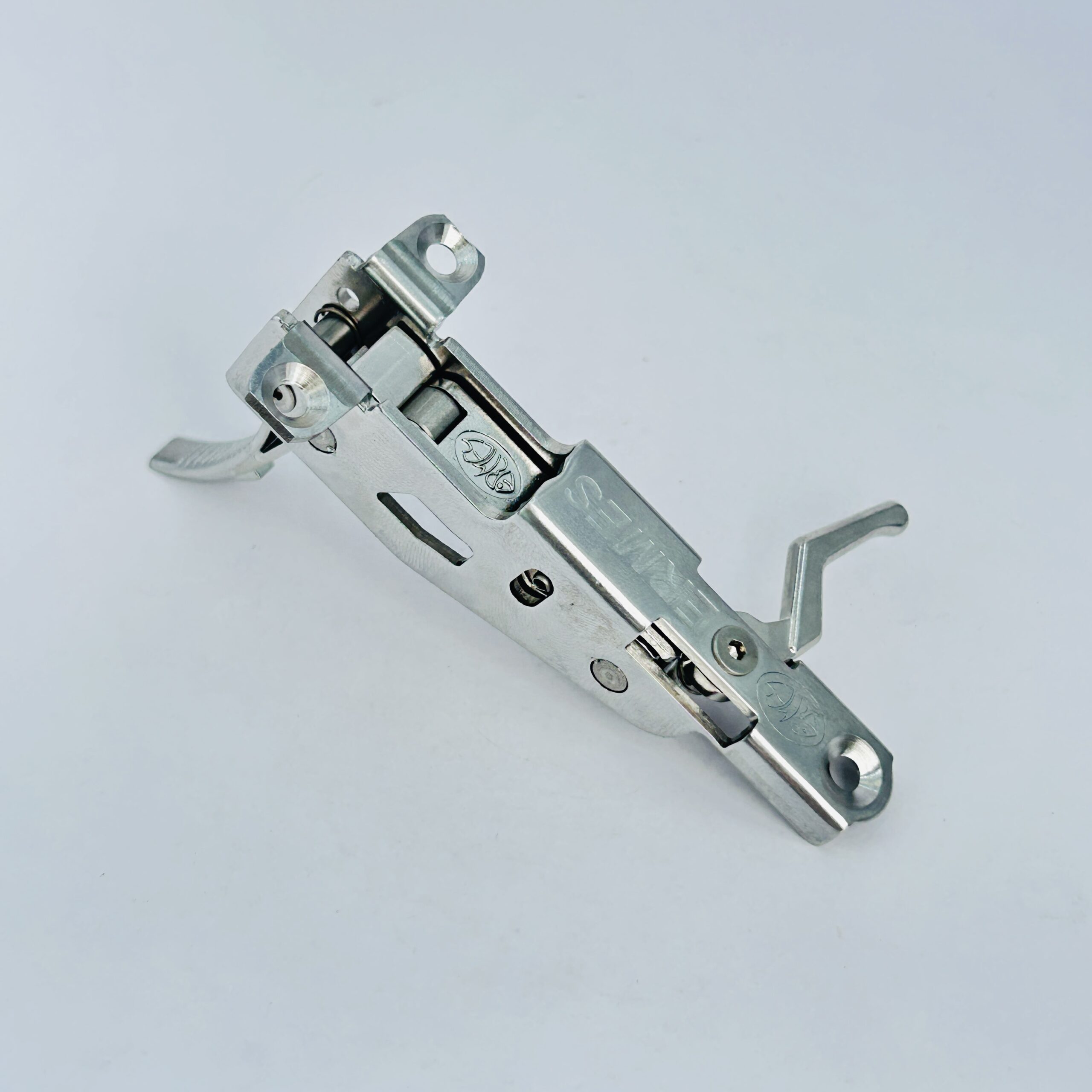

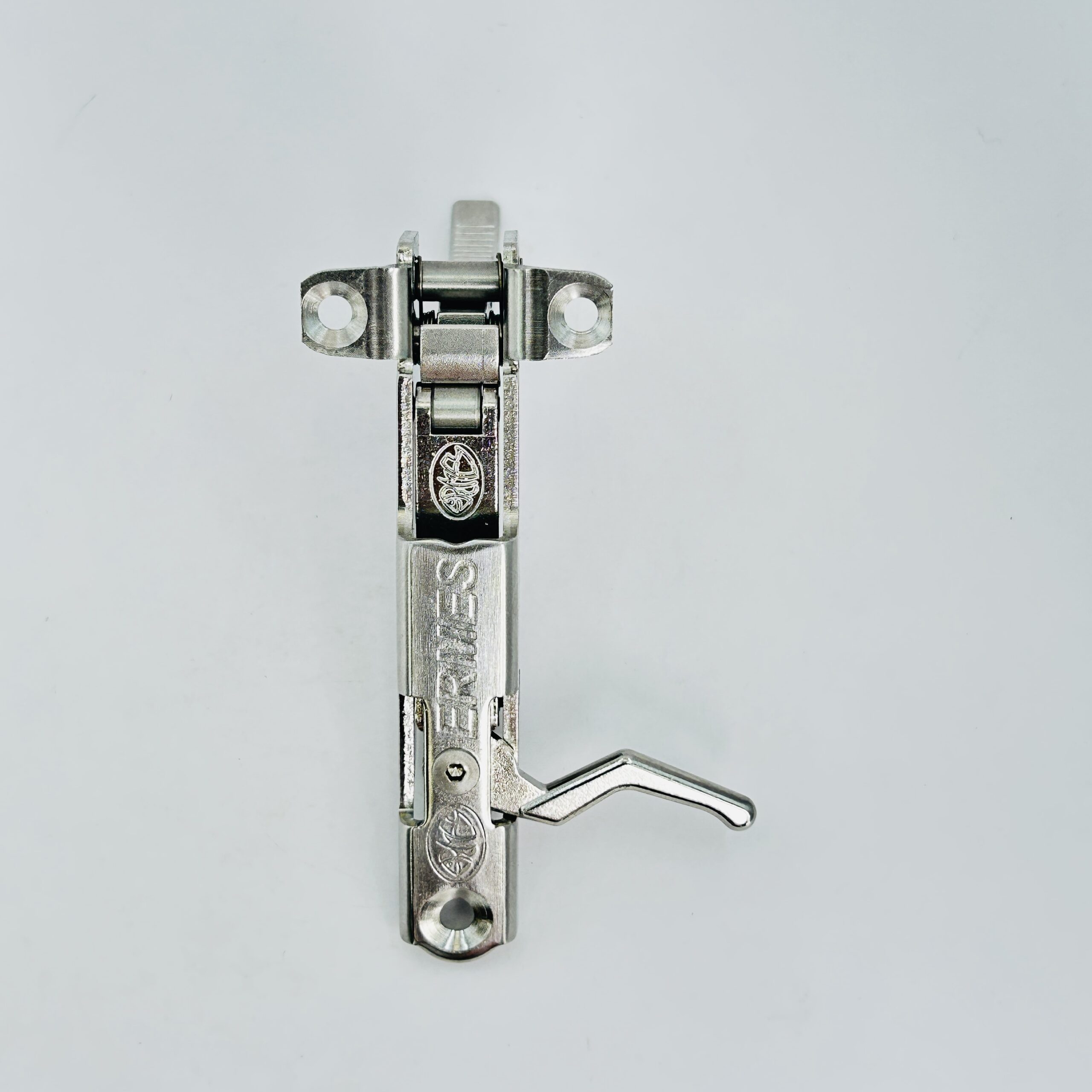

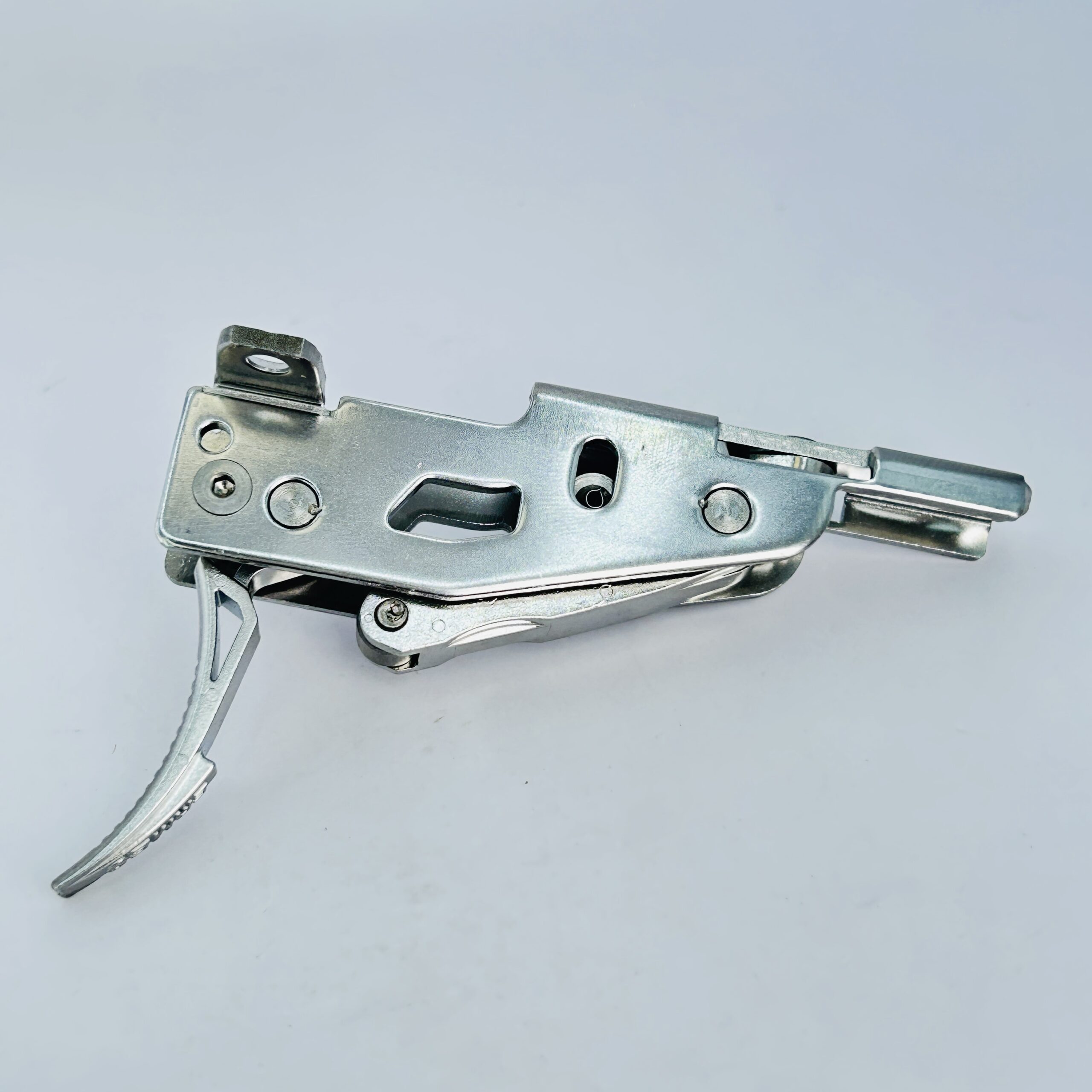

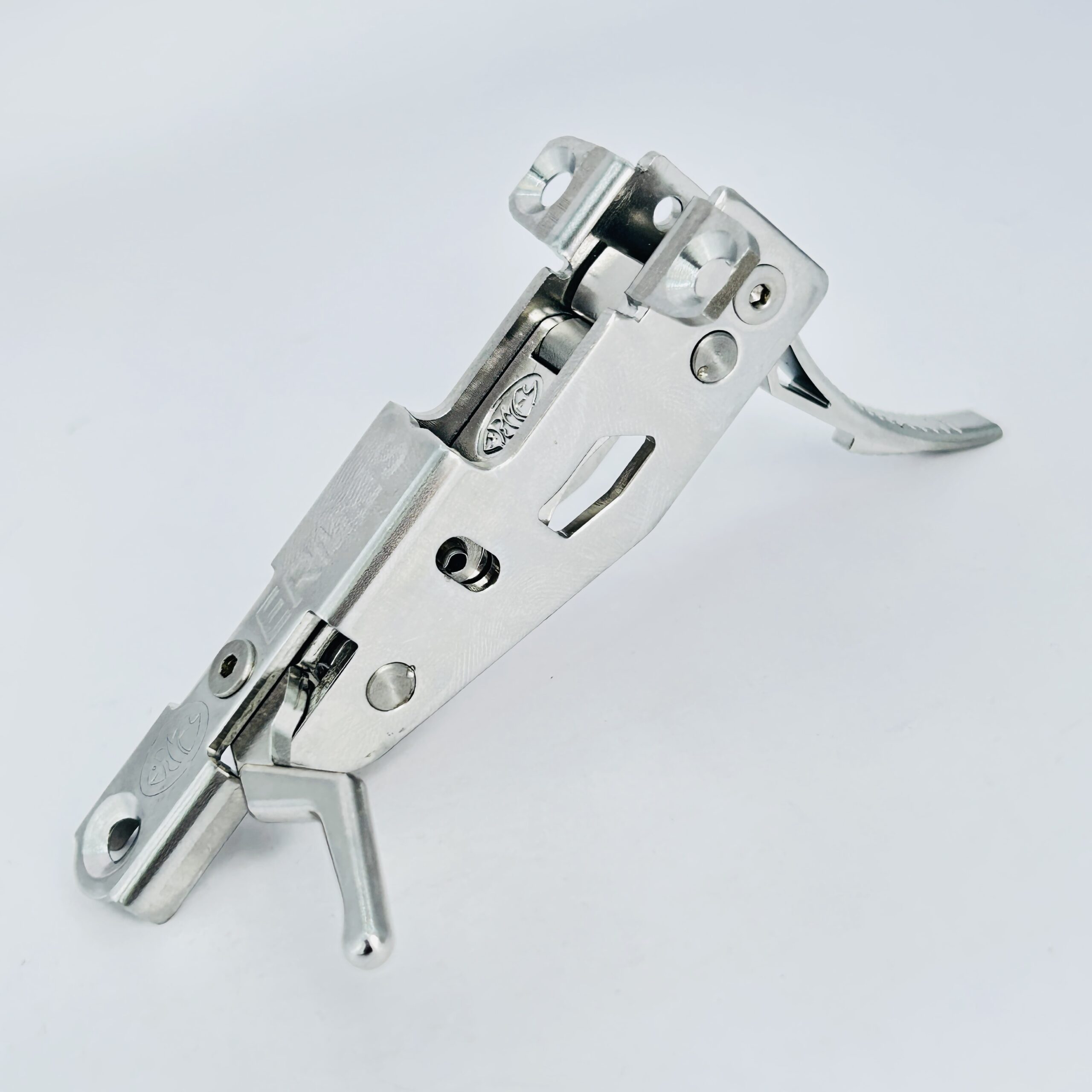

TRIGGER WING

Derived from the future model of which it retains all the characteristics. it is the best mechanism we produce with heavy workloads it can easily operate with a load of 600 kg.



Clear
SKU: 00.0004.0018 Category: Tag:
  • Patented dual roller system.
  • The box is obtained from a single sheet of metal using a system we invented to avoid welds and create 3 anchor points.
  • The roller in contact with the shaft is floating, eliminating friction.
  • The roller in contact with the trigger completely eliminates friction during the shot.
  • The trigger does not harden during the release.
  • Smooth shaft release.
  • Primarily constructed from AISI 316 stainless steel.
  • Manufactured using 3D metal injection molding technology.
  • The trigger is made from our specially formulated super-resistant alloy with a hardness of 55HRC.
  • The shaft insertion roller is made from 17-4ph and is wear-resistant.
  • The line release is rounded; it neither consumes nor damages the line.
  • The opening angle of the line release is 65 degrees.
  • Tested with a load of 550 kg.
  • Weight: 95 grams.

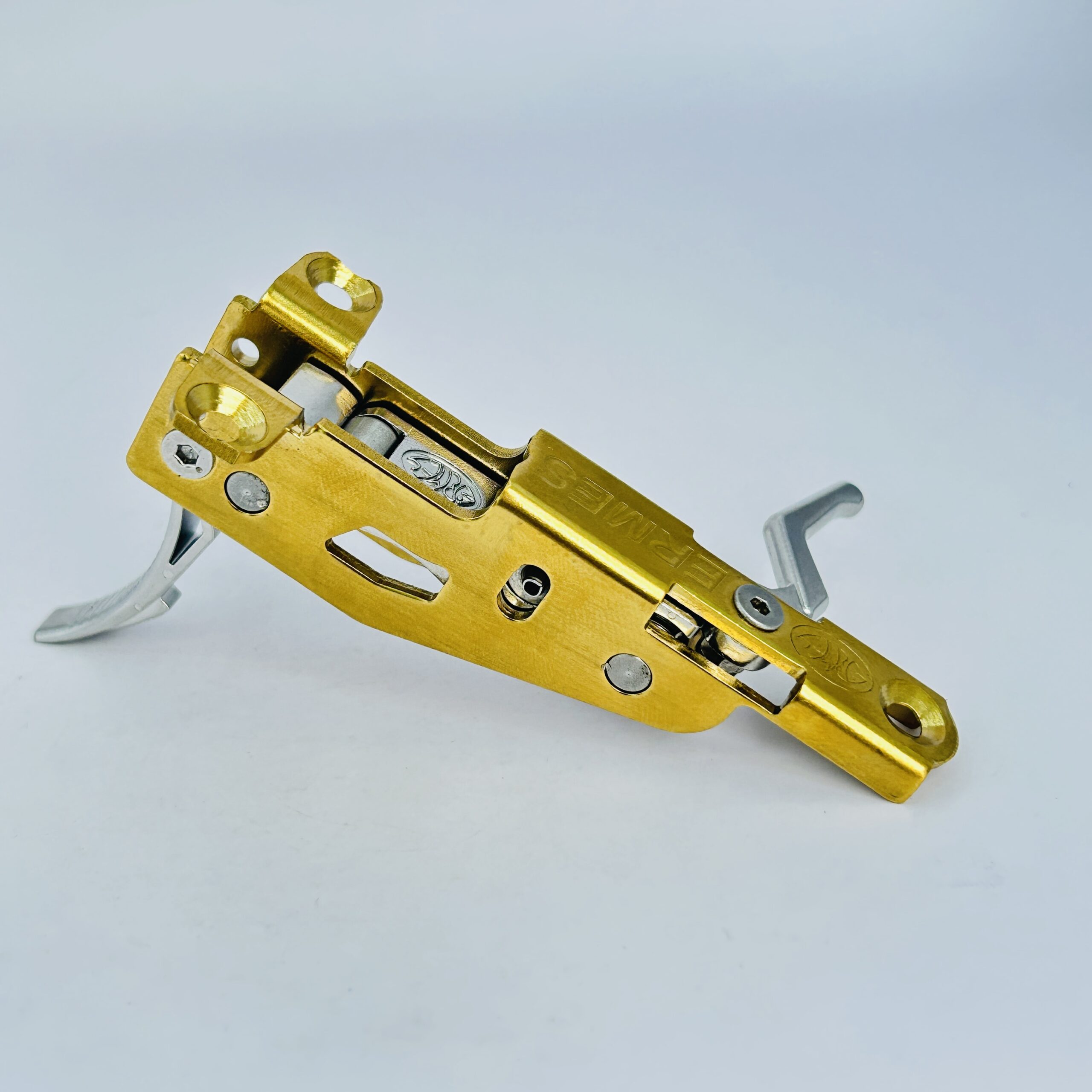

  • Available upon request in gold color.
  • Derived from the upcoming model, it retains all of its characteristics. This is the best mechanism we produce, capable of effortlessly handling heavy workloads with a load capacity of 600 kg.
  • The box is folded using a system that eliminates the need for welding on the wings for screw fixation, and it includes the addition of a third screw at the back of the box.
